Our products
Exit Light IP20
Product code: AEXITL-IP20
1 W
20 lm
50 000 h
Product Support
In case you have any questions about our products or requests please feel free to contact us.
EAN
5999097911229
Warranty
3 year(s)
Material
ABS+Acryl
Lifespan
50 000 h
Battery type
3.6V / 500 mAh Ni-Cd
Color
White
Changeable Color Temperature
No
Socket
Cabel
Power
1 W
Voltage
230 V
Voltage range
220-240 V
Working temperature
-10 - +45 °C
IP Class
IP20

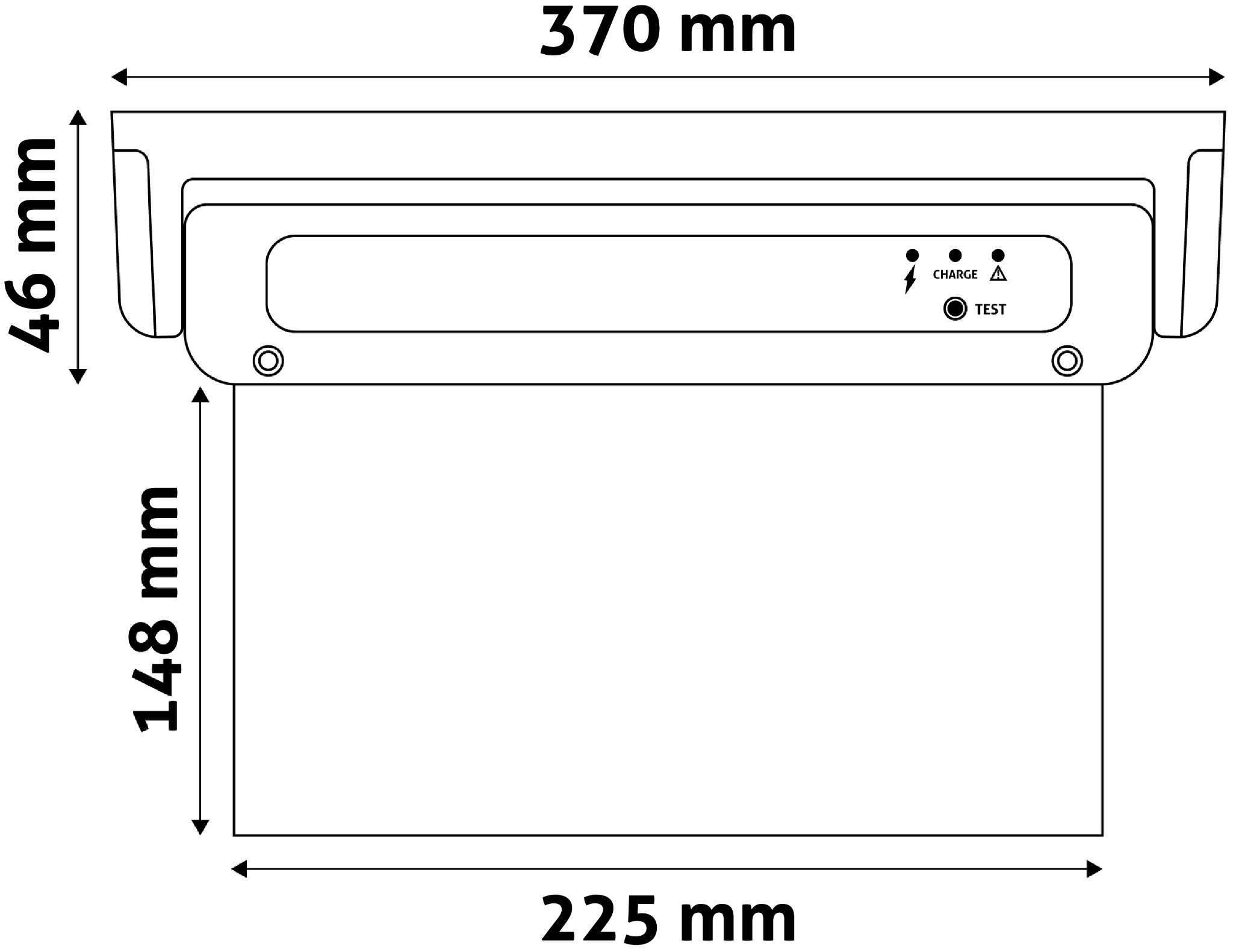

Length
225 mm
Width
370 mm
Height
46 mm
Color temperature
6 000 K
Lumen output
20 lm
Color temperature
CW
Beam angle
360 °
Chip type
5x 1500MCD
Number of LEDs
5 pcs
Dimmable
No
No information
CTN
94056120
Packaging size
375mm x 55mm x 235mm
Weight
485 gram
Gross volume
5 628,75 cm³
Carton EAN
5999097911236
Pcs / carton
10
Carton size
570mm x 395mm x 250mm
Detailed description
The Avide LED exit light is an edge-lit product with adhesive pictograms and 1 W output providing constant light. Back-up time in the case of a power failure is 180 minutes.
It can be mounted in four different ways (the sign can be mounted on the wall and ceiling alike and can also be rotated 90 °).

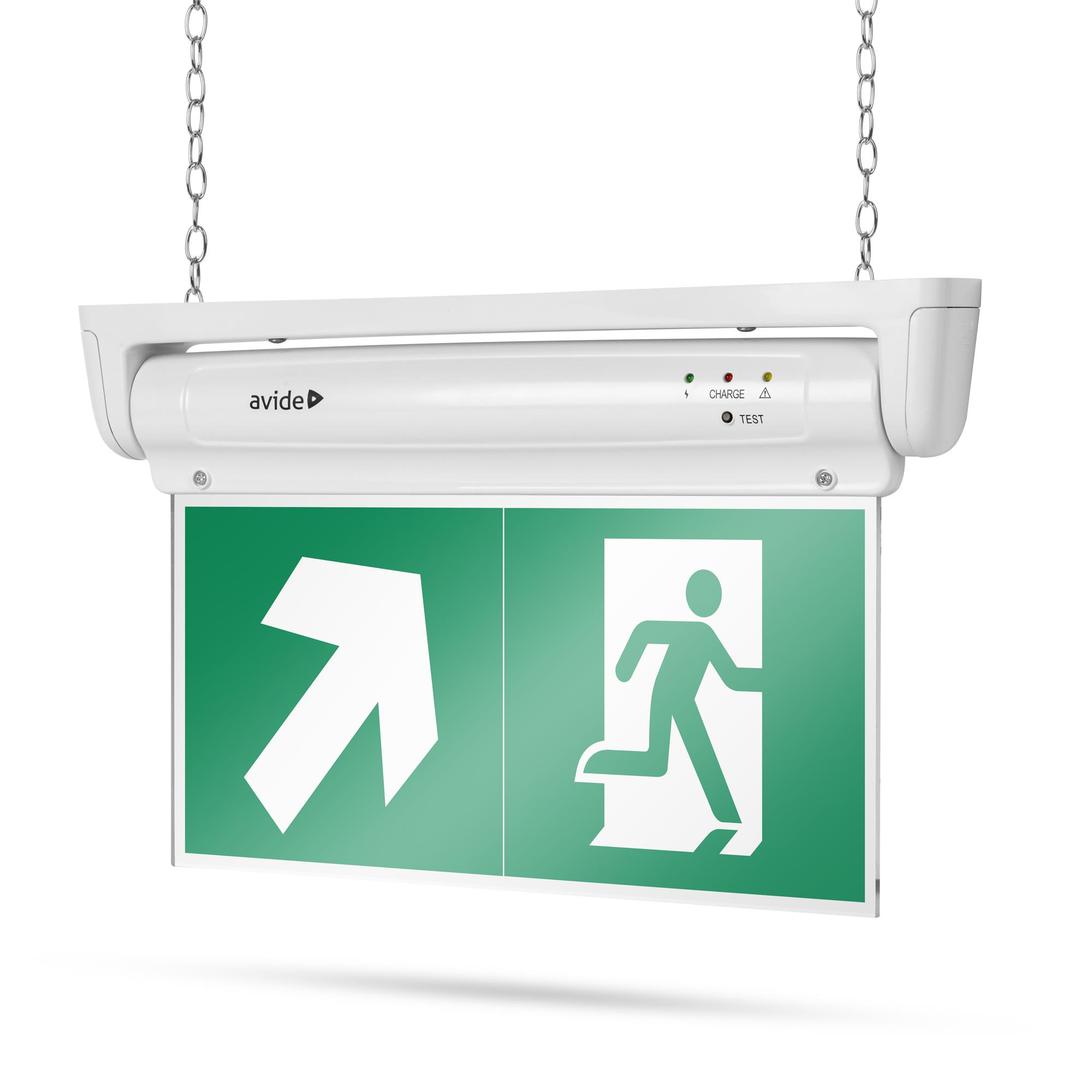

- suspended from a chain (80 cm)
- mounted on the ceiling

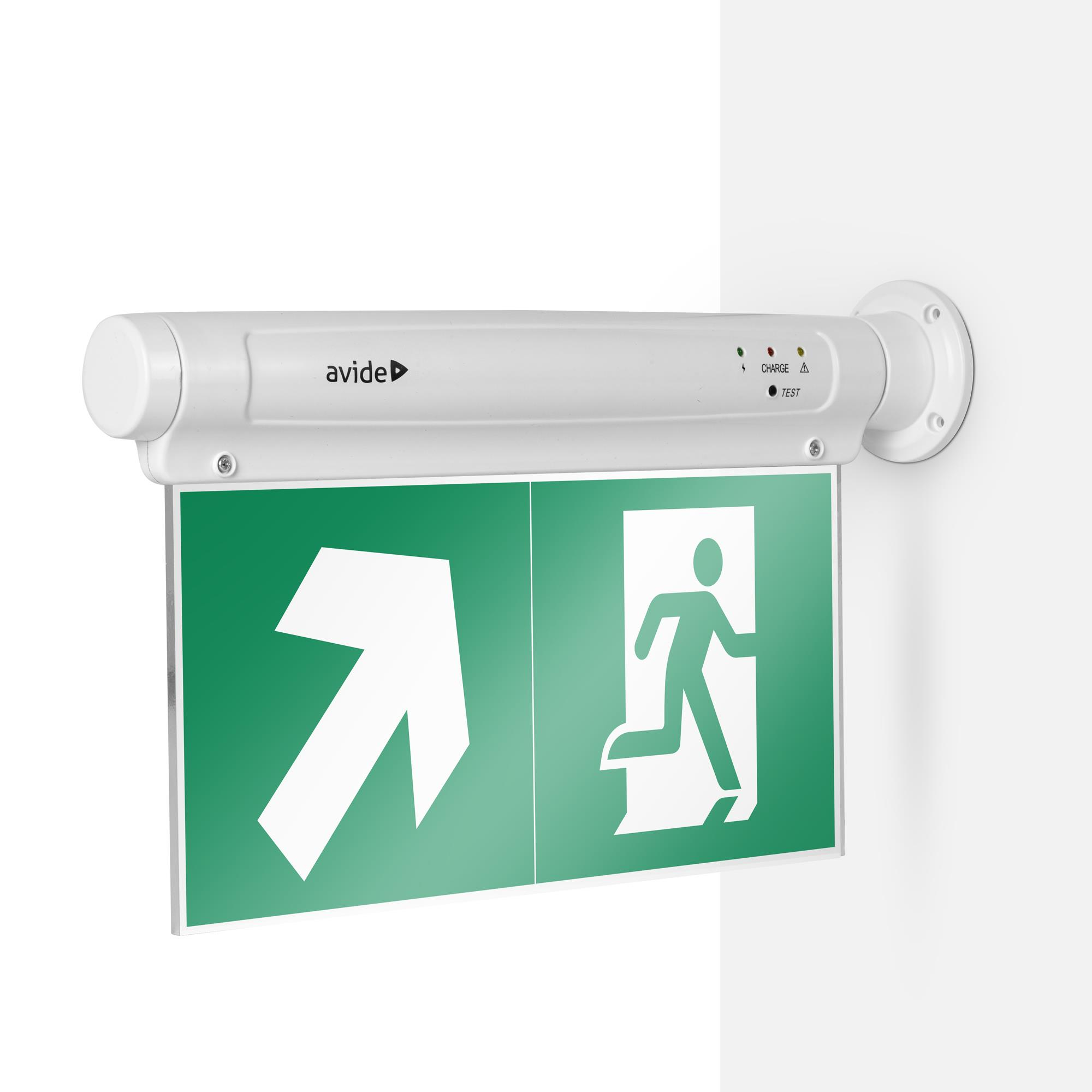

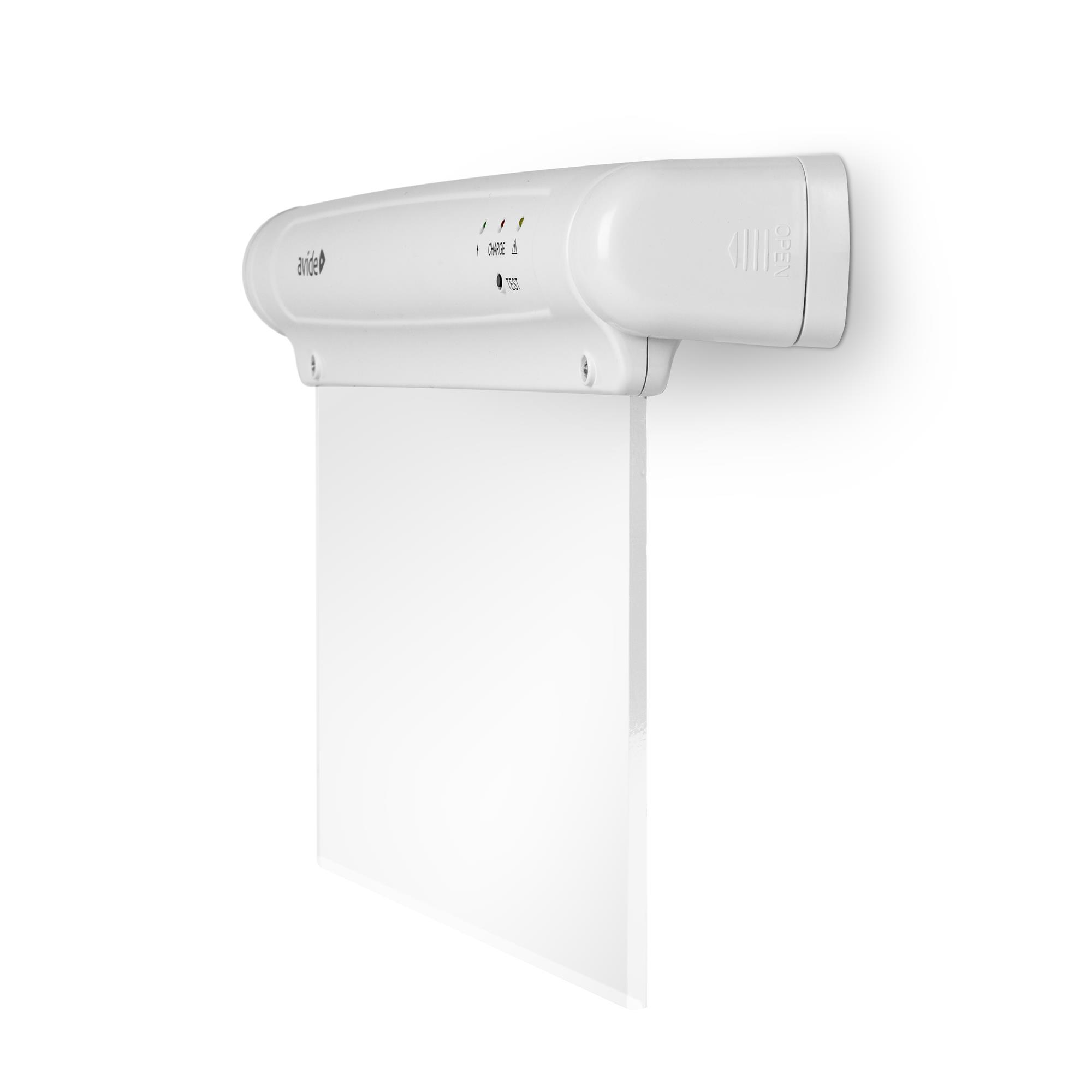

- mounted on a vertical wall in two different ways. Note that the product may also be mounted laterally with the set provided!

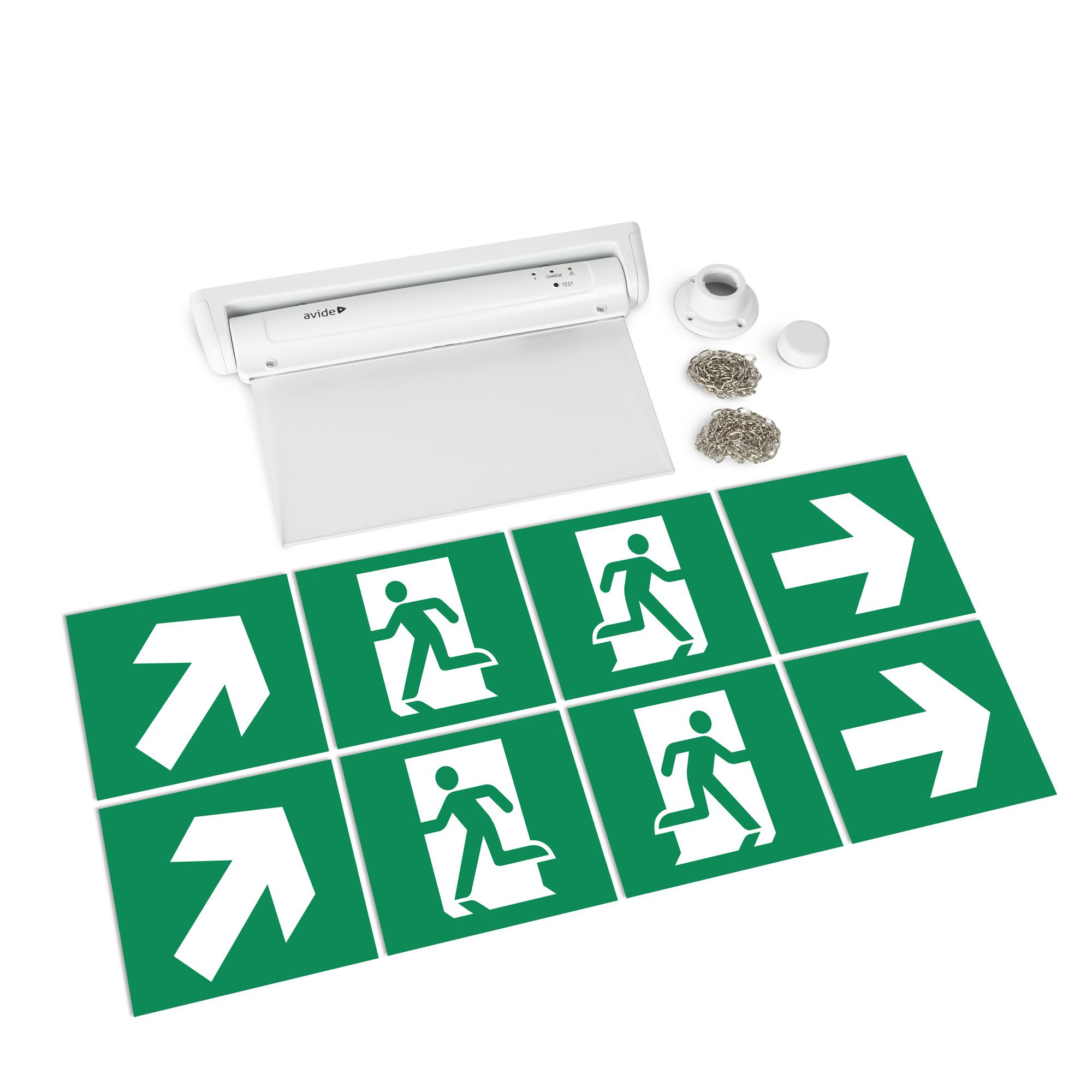

Contents of the box: light fixture, clear acrylic sheet, lateral mounting kit, 80 cm suspension chain, two types (horizontal, 45 °) of direction indicating arrows, pictograms with figure running to the right and left, complete instructions for use and installation in English and Hungarian.
