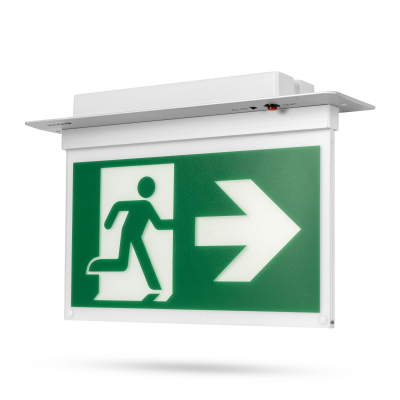

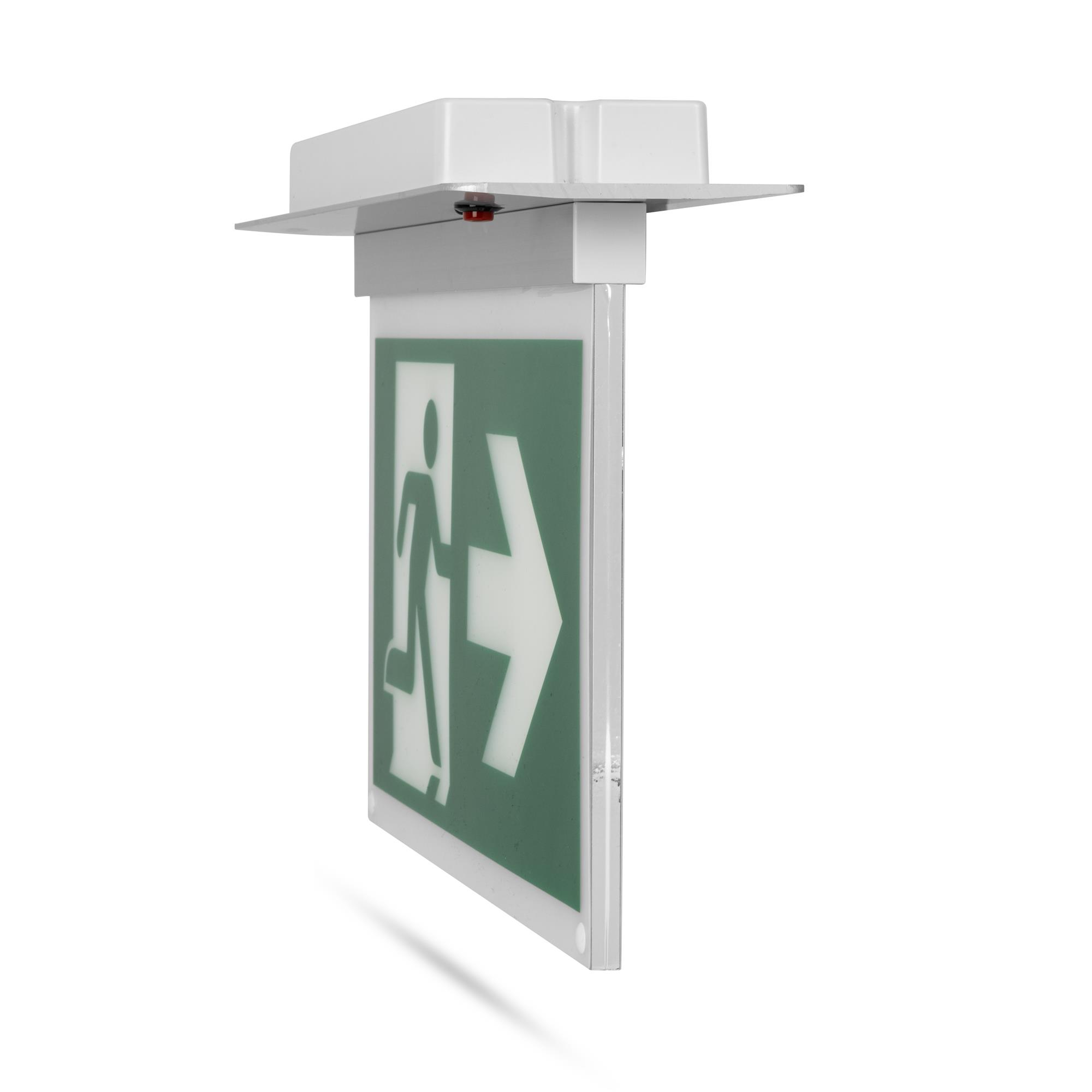

Exit Light ALU recessed with horizontal sign IP20
Product code: AEXITL-IP20-RE
1 W
30 lm
50 000 h
Product Support
In case you have any questions about our products or requests please feel free to contact us.
EAN
5999097951768
Lifespan
50 000 h
Battery type
Ni-MH 3.6V, 1000mAh
Power
1 W
Voltage range
3.6 V
IP Class
IP20

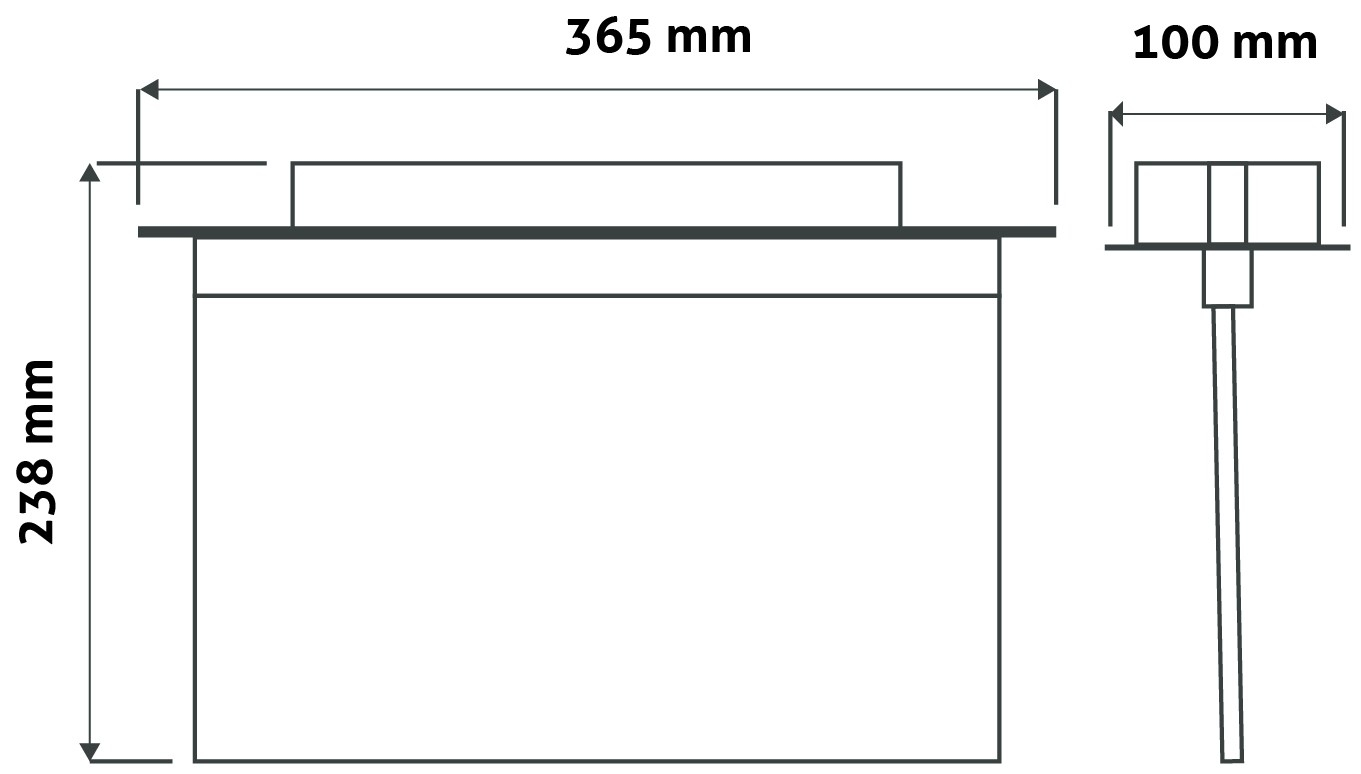

Length
100 mm
Width
365 mm
Height
238 mm
Depth
100 mm
Lumen output
30 lm
Dimmable
No
CTN
94056120
Weight
485 gram
Gross volume
7 623 cm³
Carton EAN
5999097951775
Pcs / carton
6
Detailed description
The Avide LED exit light is an edge-lit product with adhesive pictograms and 1 W output providing constant light. Back-up time in the case of a power failure is 180 minutes.
It can be mounted in four different ways (the sign can be mounted on the wall and ceiling alike and can also be rotated 90 °).
- suspended from a chain (80 cm)
- mounted on the ceiling
- mounted on a vertical wall in two different ways. Note that the product may also be mounted laterally with the set provided!

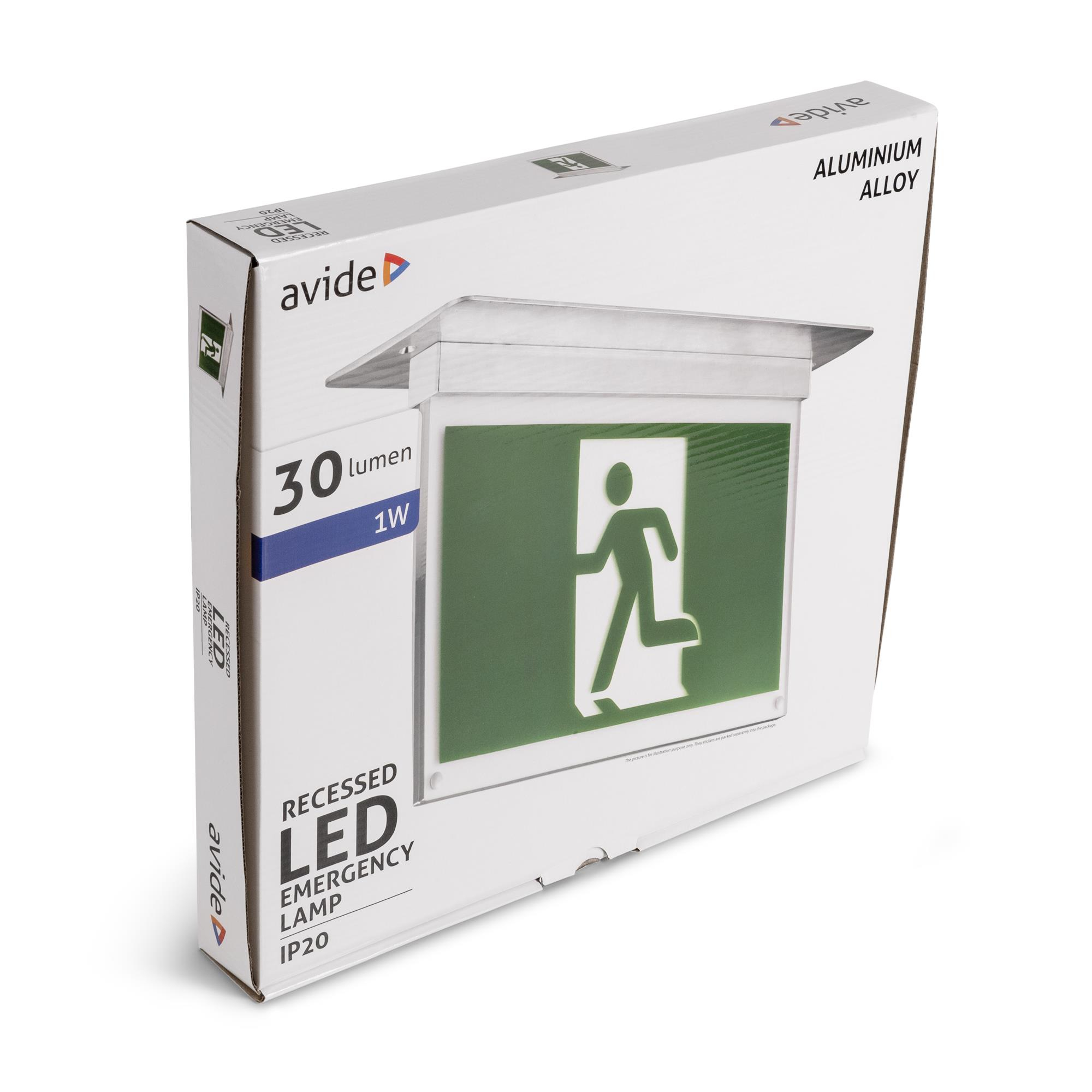

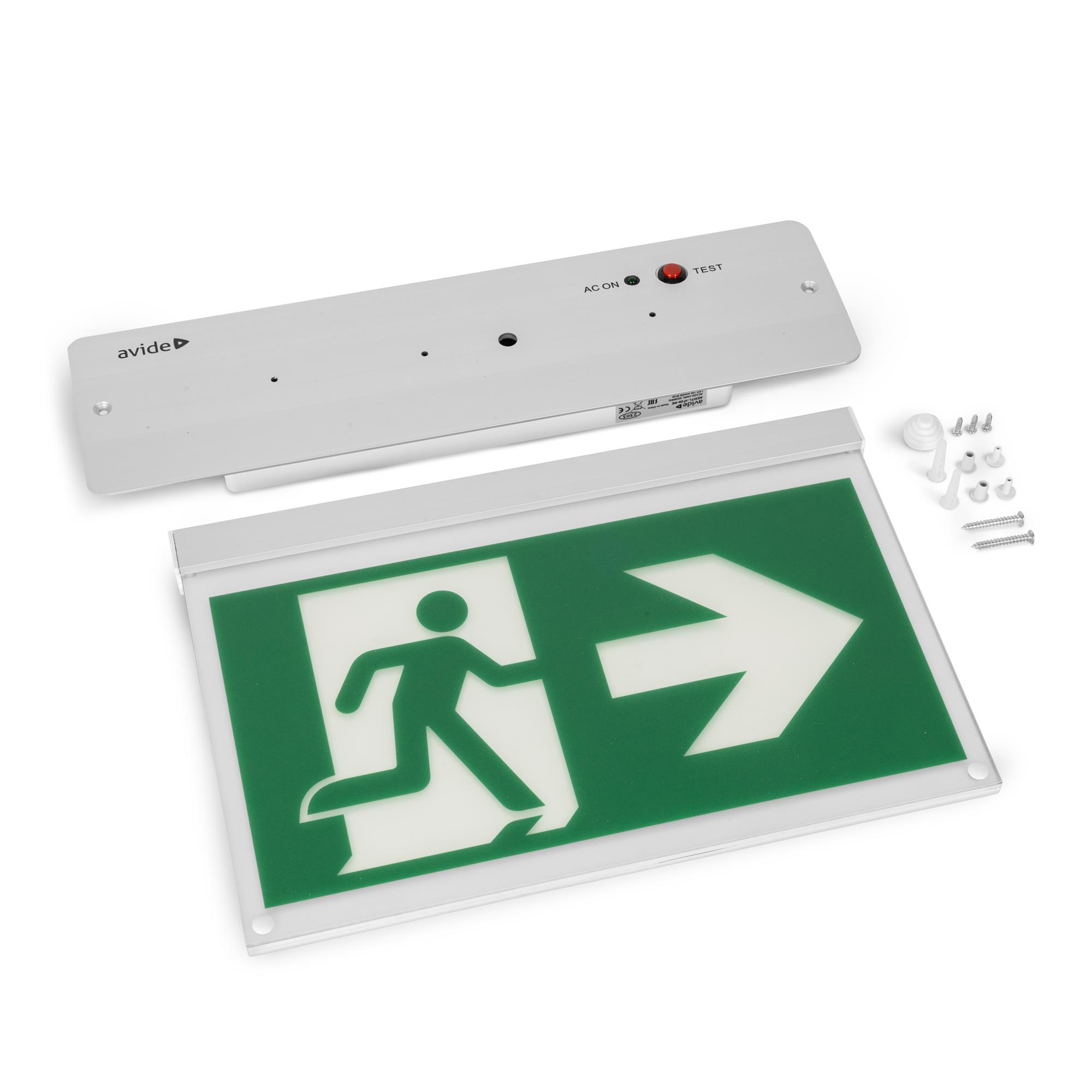

Contents of the box: light fixture, clear acrylic sheet, lateral mounting kit, 80 cm suspension chain, two types (horizontal, 45 °) of direction indicating arrows, pictograms with figure running to the right and left, complete instructions for use and installation in English and Hungarian.
